Superior throughput, versatility and reliability for dedicated forms printing
- OKI Tank Tough with high durability 24 pin print head
- Up to 473 characters per second print speed
- Parallel & USB interfaces, internal Network & serial card options
- Multi-part paper handling (original + 4 copies) 80 column 10" wide carriage for narrow paper
- Rear Push Tractor + Bottom Push & Top Pull options

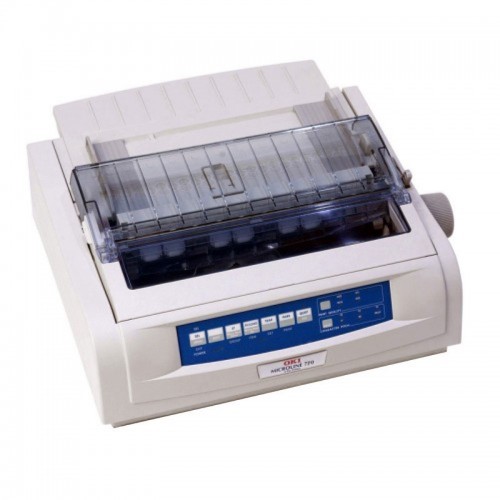

The Microline 790 has been designed for use in the harshest of operating environments whilst offering the highest levels of flexibility and performance with unparalleled reliability.
Key specifications
Number of copies:
5 (original + 4 copies)Print speed:
Fastest: 473 cps High speed draft @ 10cpi: 420 cps LQ @ 10cpi: 105 cps Printing width: 80 characters (10cpi), 160 characters (compressed mode)
Full specifications
Accoustic noise:
55dBA, 51dBA in quiet-mode
Warranty:
1 year on-site warranty, including print head
Voltage requirements:
230/240V
ACWeight:
7.6Kg
Frequency:
50/60 Hz
Dimensions(HxWxD):
153 x 398 x 345mm
Paper Handling
Paper path 1:
Bottom-feed: for specific applications, heavier paper and labels (optional pull-tractor required)
Optional paper handling:
Pull tractor feed Single/Dual bin cut-sheet feeder Roll paper stand (80 column only) Bottom tractors with metal tear-off bar
Paper path 2:
Top-feed: semi-automatic feeding of single sheets or cut sheetfeeder for letterhead
Paper path 3:
Rear-feed: extra flexibility: paper-park for easy switching between continuous forms and single sheets
Number of copies:
5 (original + 4 copies)
Paper weight:
34-90 g/m2
Standard paper handling:
Push-tractor rear-feed Paper park feature Easy tear-off without paper waste Semi-automatic feeding of single sheets
Paper dimensions:
76 - 254mm wide (continuous forms)
Printing Characteristics
Print speed:
Fastest: 473 cps High speed draft @ 10cpi: 420 cps LQ @ 10cpi: 105 cps
Printhead:
High durability 24 pin print head
Printing width:
80 characters (10cpi), 160 characters (compressed mode)
Character pitch:
10, 12, 15, 17 and 20 cpi
Built in barcodes:
Code 39, UPC-A, UPC-E, EAN 8, EAN 13, Interleaved 2 of 5, ZIP, Code 128
Fonts:
Courier(Scalable),Roman(Scalable), Swiss(Scalable), Prestige, Gothic, Utility, Swiss Bold, Orator, OCR-A, OCR-B + BarcodesGraphic resolution:
360 x 360 dpi
Memory:
128Kb
First printable line:
0.5mm from top of page
Font styles:
Emphasised, Enhanced, Double Width, Double Height, Italics, Outline, Shadow, Bold, Underline, Subscript, Superscript
Reliability
Print head life:
200 million characters
Ribbon life:
4 million draft characters
MTBF:
20,000 hours
Interfaces and Emulations
Interface:
Centronics parallel & USB
Emulation:
Epson LQ Esc /P2 IBM ProPrinter X24/XL24
| PRINTING SPECIFICATIONS | |
| Print Technology | Dot Matrix |
|---|---|
| Print Speed (Draft) | 473 cps |
| Output Type | - |
| Connectivity | - |
| Monthly Duty Cycle | - |
| Display | - |
| Number of Print Cartridges | Black |
| Functions | |
| Wireless Capability | - |
| Print Speed (Best) | 473 cps |
| Paper Input | - |
| Paper Output | - |
| Borderless Printing | No |
| Duplex Printing | No |
| Scanner Type | No |
| Scan File Format | No |
| Scan Resolution | No |
| Scan Speed | No |
| Automatic Document Feeder Capacity | No |
| Faxing | No |
| Fax Transmission Speed | No |
| Fax Memory | No |
| Power | - |
| Power Consumption | - |
| Energy Efficiency | - |
| What's in the box | 1 x OKI MICROLINE 790 A4 24-Pin USB/Parallel Dot Matrix Printer |
| Cable Included | - |
| Warranty | - |
| Print Resolution (black) | - |
| Dimensions (W x D x H) | 153 x 398 x 345mm |
| Weight | 7.6Kg |
| Print Resolution (color) | - |
